Swing Wheel Sorting Machine

Swing Wheel Sorting Machine

Overview：

The Swing Wheel Sorting Machine (RK-SWS) developed by Realkey features modular design, simple structure, and the ability to efficiently sort various angles (30°, 45°, 60°, 90°, etc.). This equipment not only achieves high-speed sorting but is also suitable for sorting items of different sizes and types, such as packages, bags, woven bags, express bags, trays, books, and crates. The Swing Wheel Sorting System is widely used in industries such as e-commerce, logistics, express delivery, pharmaceuticals, books, tobacco, and apparel for item sorting.

Immediately consult
  • Product Features +
  • Advantage +
  • Application +

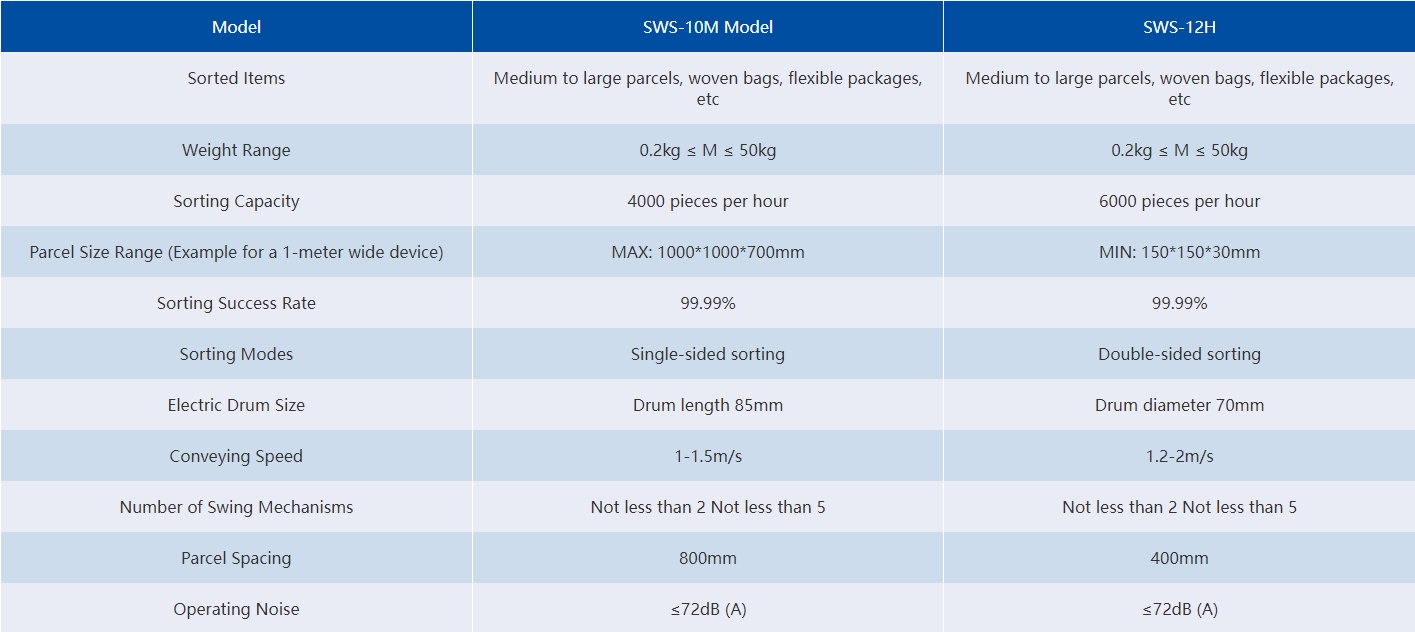

  • Technical Parameter +
  • Related issues +
  • Download +

1. Suitable for heavy and large item sorting.


2. Flexible configuration, can be combined with belt sorting machines to create a sorting matrix. Positioning and quantity can be freely adjusted.


3. High sorting stability with gentle movements to prevent damage to goods.


4. Modular design reduces failure rate, ensuring quick module maintenance or replacement even in case of a breakdown.


5. Easy and quick installation, allowing for rapid setup within a short timeframe.


The swing wheel sorting equipment is versatile and applicable to industries such as e-commerce, logistics, express delivery, pharmaceuticals, books, tobacco, apparel, maternity and baby products, fresh cold chain, beverages, and more. It efficiently sorts various items like boxes, bags, woven bags, express bags, trays, books, packages, letters, turnover boxes, and electronic products. It excels in sorting soft packages with unique effectiveness.

  • 未标题-2.jpg
  • 2.jpg
  • 3.jpg


Sorting accuracy

Sorting mode

Conveying speed (adjustable with variable frequency)

Successful sorting rate

Reflux rate

Swing wheel dimensions

Response time of the swing wheel

Package handling requirements

≥3600p/h

Bilateral sorting

0.6-1.5m/s

99.99%

≤2%(value after excluding backflow caused by non-equipment reasons)

1260mm*1260mm

45°Swinging time≤200ms        90°Swinging time≤350ms

Length：150mm≤L＜1200mm;    Width：150mm≤W＜900mm;    Height：30mm≤H＜750mm;    Weight：200g≤G＜60kg；
