Tilt Tray Sorter

Tilt Tray Sorter

Overview：

Realkey's independently developed tilt tray sorter, the RK-TTS, consists of conveying, tilting, tray carrying, recognition, control systems, and track framework. It features circular continuous conveyance, minimizing space requirements. With fast sorting speeds and compatibility with irregular shapes, it employs a purely mechanical tilting mechanism that operates without external power, ensuring long-term stability. The non-contact linear motor drive offers low energy consumption, minimal noise, and easy maintenance. Its modular design enhances scalability. The RK-TTS effectively meets high-efficiency sorting needs in various industries including postal, courier, e-commerce, fashion, and perishables.

Immediately consult
  • Product Features +
  • Advantage +
  • Application +
  • Technical Parameter +
  • Related issues +
  • Download +

1. Compact structure with a small footprint, only 3.4m in circular width (excluding chutes).


2. Strong compatibility with irregular shapes, achieving sorting efficiency of up to 10,000 pieces per hour.


3. Gentle sorting action, minimizing part damage, with a sorting accuracy rate of ≥99.99%.


4. Power and signal-free tilting sorting mechanism, ensuring stable operation and low failure rate.


5. Options for both manual and automatic feeding methods.


6. Modular design for high scalability, allowing easy addition or removal of sorting compartments.


7. Standardized design for easy maintenance, resulting in low operational and maintenance costs.


8. Utilizes non-contact linear motor drive for the main propulsion, offering low energy consumption and minimal noise.

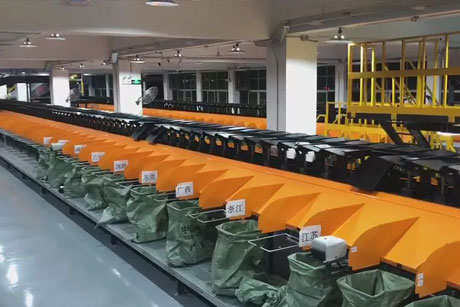

Suitable for sorting parcels or products in industries such as postal services, express delivery, e-commerce, fashion, supermarkets, and fresh produce distribution. It's suitable for sorting packages with dimensions below 500*400*400, ranging from 10g to 15kg in weight, and of various sizes, shapes, and characteristics, except for spherical and smooth cylindrical items.
